12V Automotive Relay JQC-3FF-M


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry
Contact arrangementVoltage drop(initial)1)Max. continuous current2)Max. switching current3)Max. switching voltageMin. contact loadElectrical enduranceMechanical enduranceInitial insulation resistance
1A, 1CTyp.: 20mV(at 10A)
Max.: 250mV(at 10A)		10A15A30VDC1A 6VDCSee"CONTACT DATA"1 x107 ops(300ops/min)100MΩ (at 500VDC)
Dielectric strength4)Operate timeRelease time5)Shock resistance6)Vibration resistance6)Ambient temperatureTerminationUnit weightConstruction
Between contacts: 750VAC
Between coil & contacts: 1500VAC		Typ.: 5ms
Max.: 10ms (at nomi. vol.)		Typ.: 3ms
Max.: 10ms		98m/s²10Hz to 55Hz 1.5mm DA-40C to 85°CPCB7)Approx. 10gPlastic sealed, Flux proofed

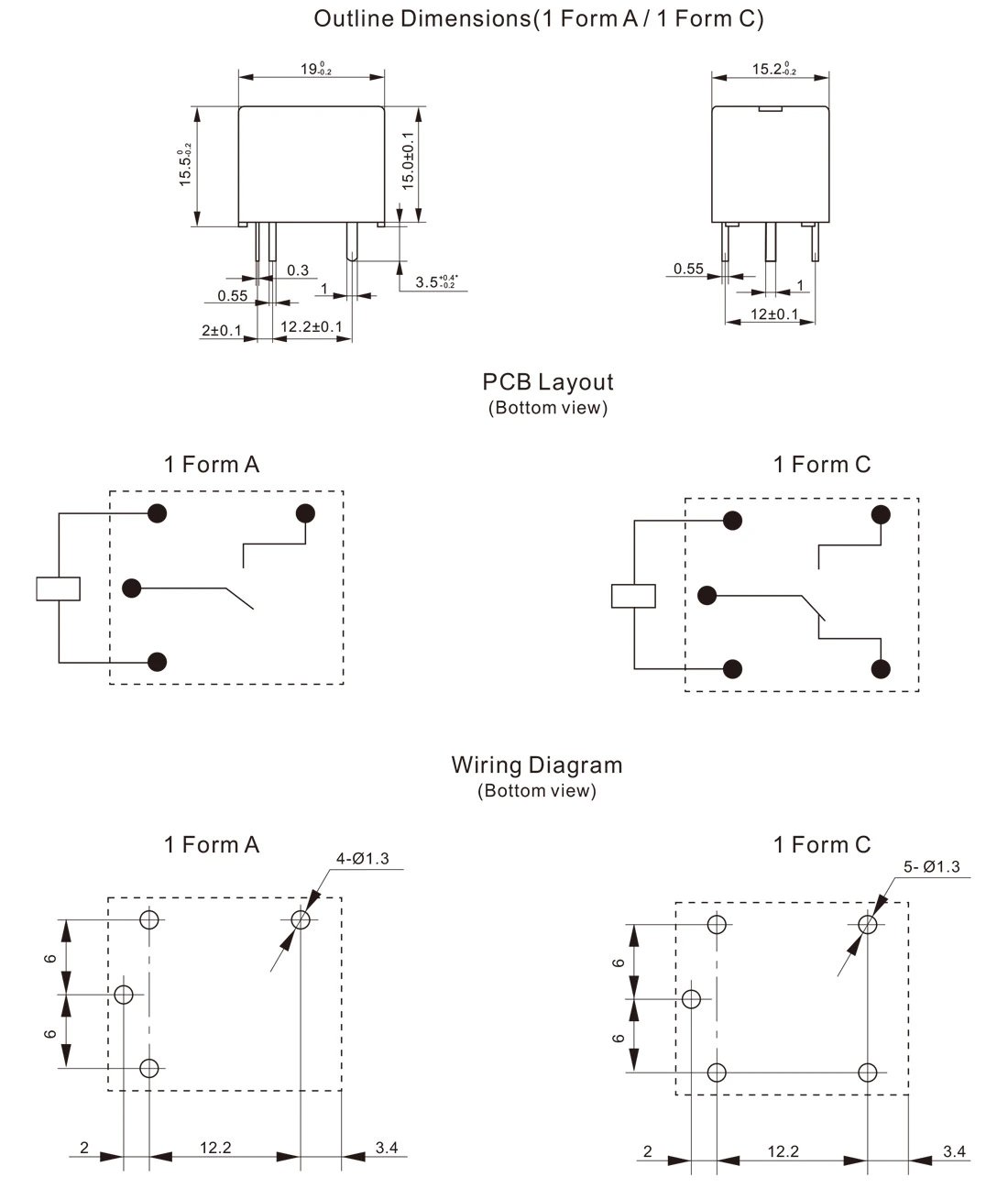

Dimensions of 12V Automotive Relay JQC-3FF-M

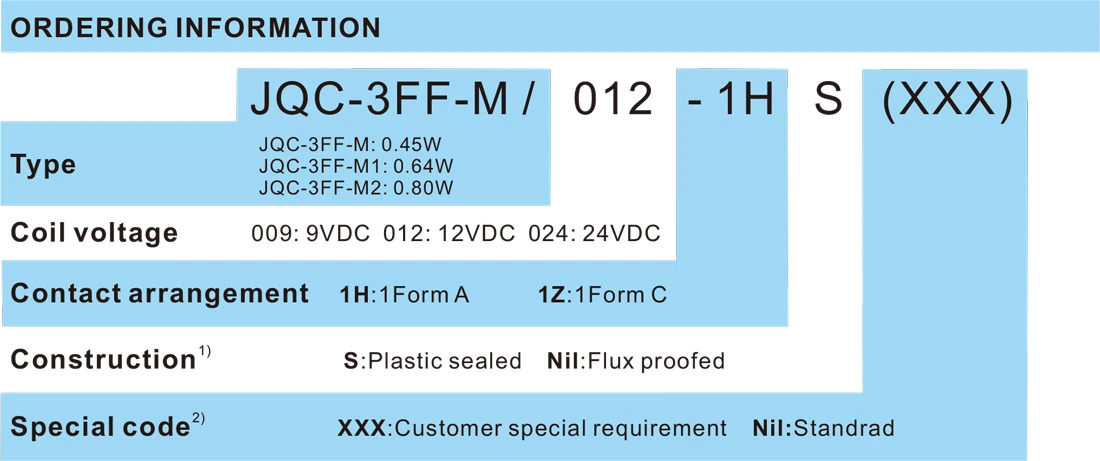

12V Automotive Relay JQC-3FF-M Order Mark
