24V Solar Relay JT102FW


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Surge withstand voltage

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Shock resistance

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Functional

Destructive

1000MΩ(at 500VDC)

4500VAC 1min

2500VAC 1min

10kV(1.2/50 μs)

20ms max.

10ms max.

100m/s²

1000m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

-40℃ to 85℃

PCB

Approx. 23g

Dust protected


Dimensions of 24V Solid State Relay JT102FW

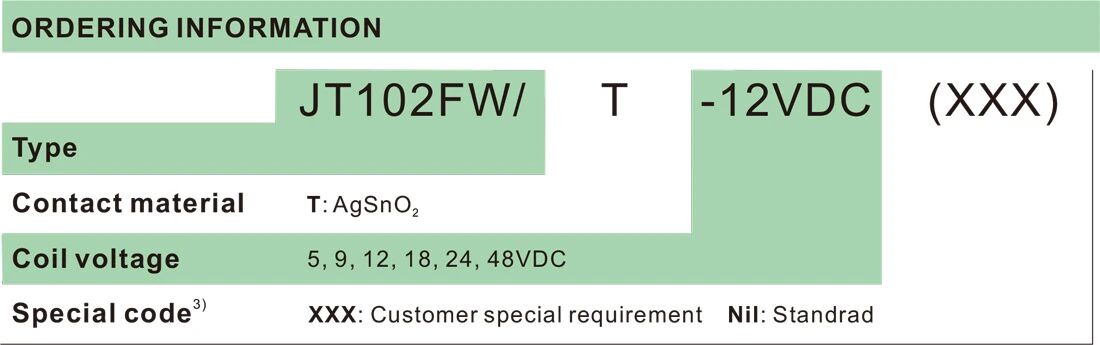

24V Solid State Relay JT102FW Order Mark
