Subminiature High Power Relay JT152F


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry
Insulation resistanceDielectric strengthSurge voltage(Between coil & contacts)Operate time(at nomi. volt.)Release time(at nomi. volt.)Ambient temperatureShock resistanceVibration resistanceHumidityUnit weightConstruction
Between coil & contactsBetween open contactsFunctionalDestructive
1000M Ω (at 500VDC)2500VAC 1min1000VAC 1min6kV(1.2/50 μs)10ms max.5ms max.-40℃~+105℃98m/s²980m/s²10Hz to 55Hz 1.5mm DA5% to 85% RHApprox. 15gPlastic sealed, Flux proofed

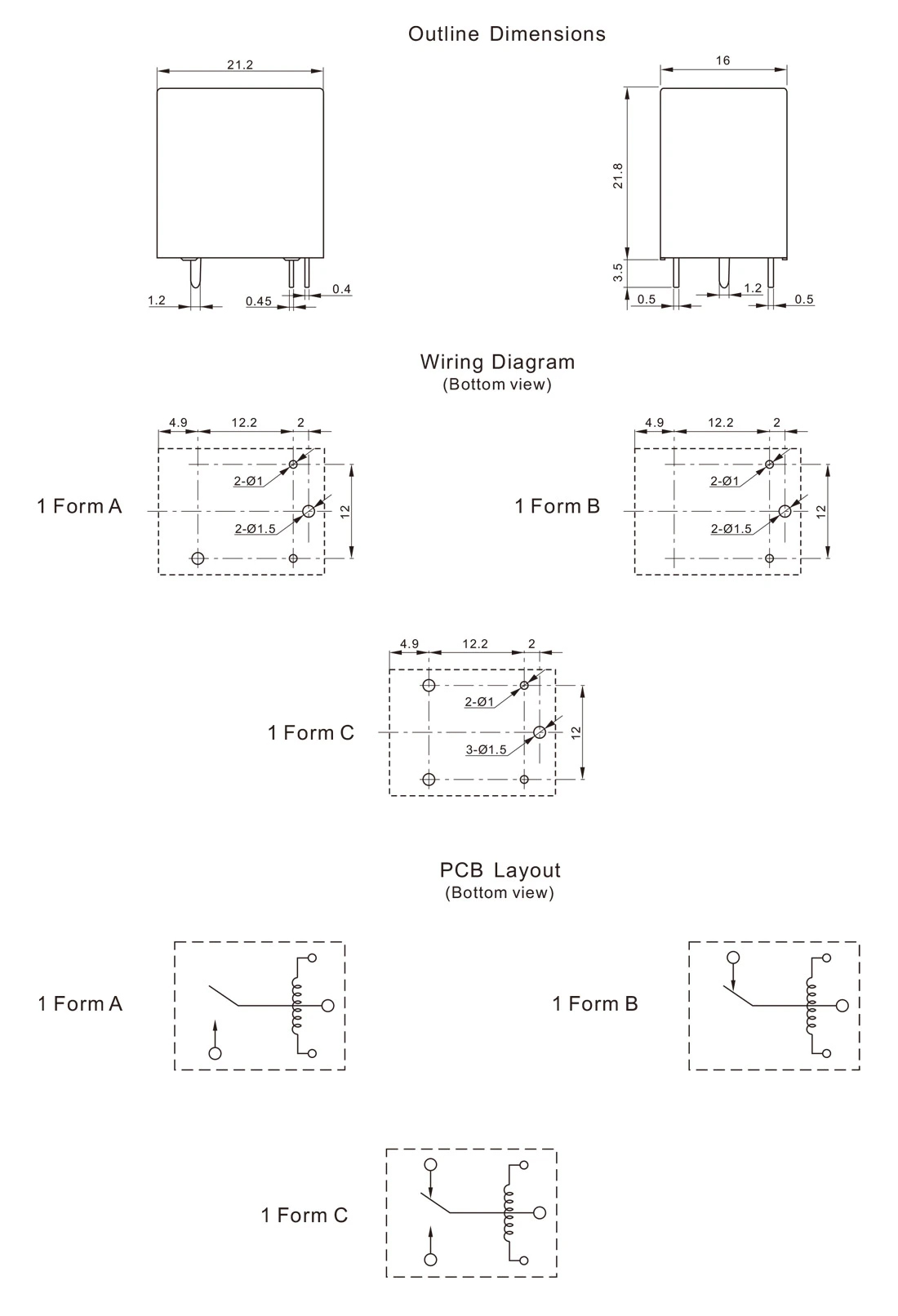

Dimensions of Subminiature High Power Relay JT152F

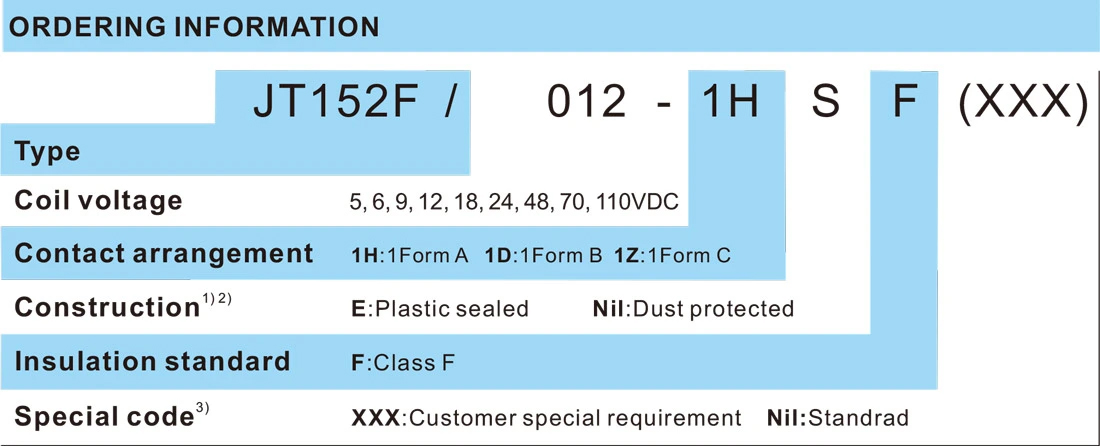

Subminiature High Power Relay JT152F Order Mark
