Solar Relay 240V JT2150W


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry
Insulation resistanceDielectric strengthSurge withstand voltageOperate time(at nomi. volt.)Release time(at nomi. volt.)Coil temperature rise(at nomi. volt.)Shock resistanceVibration resistanceHumidityAmbient temperatureTerminationUnit weightConstruction
Between coil & contactsBetween open contactsFunctionalDestructive
1000MΩ(at 500VDC)with T:  4000VAC 1min
without T: 2500VAC 1min		1500VAC 1min6kV(1.2/50μs)20ms max.10ms max.70K max. (Contact load current 43A, rated voltage excitation 50%, at 85°C)98m/s²980m/s²10Hz to 55Hz 1.5mm DA5% to 85% RH-40℃ to 85℃PCBApprox. 36gPlastic sealed, Flux proofed

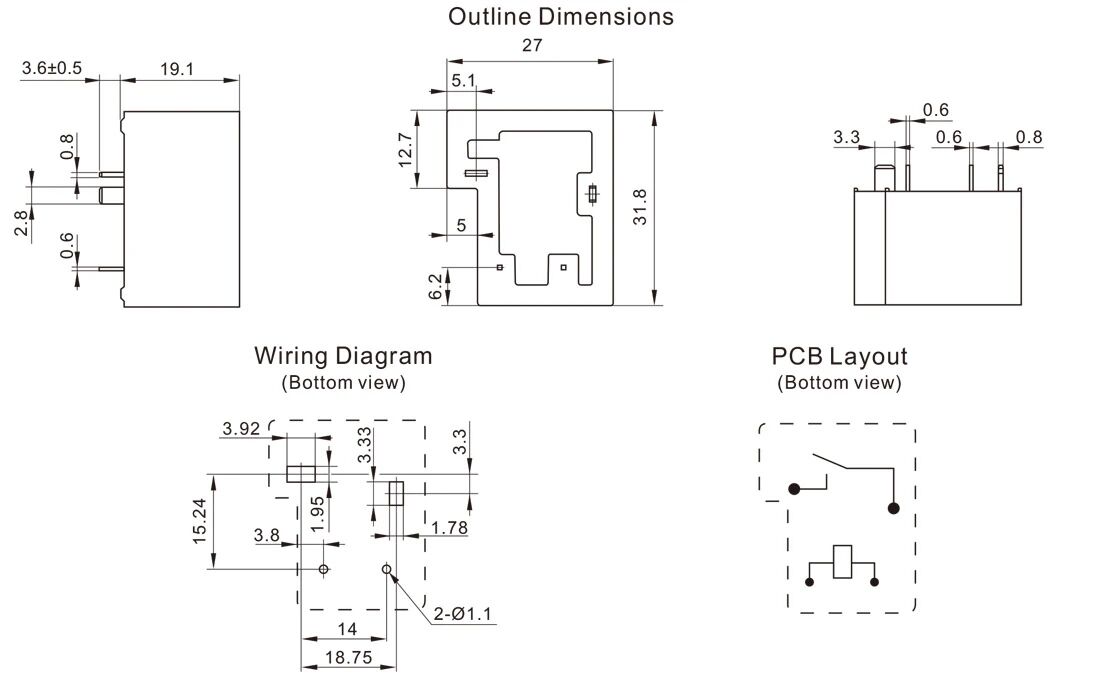

Dimensions of Solid State Relay 240V JT2150W

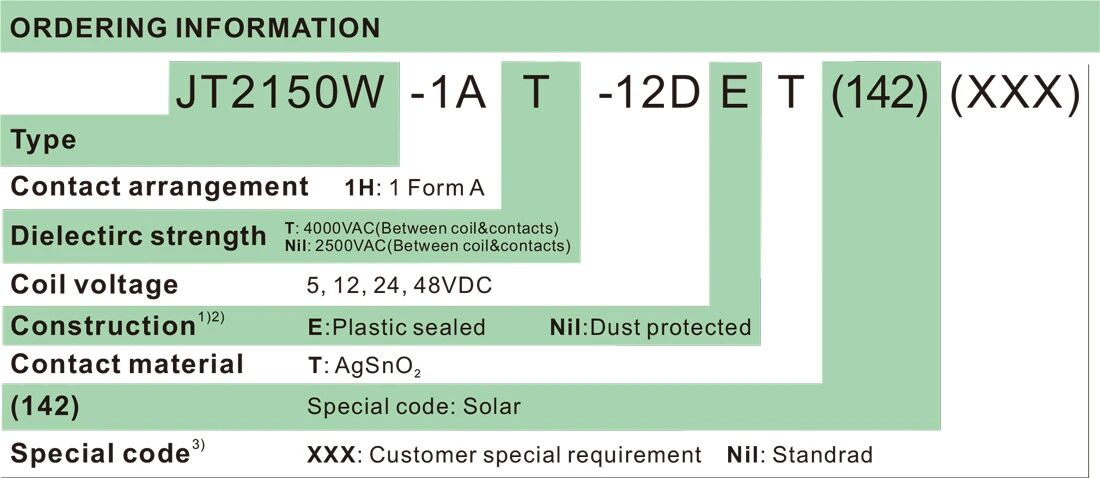

Solid State Relay 240V JT2150W Order Mark
