Subminiature Intermediate Power Relay JT33F


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Shock resistance

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Functional

Destructive

1000M Ω (at 500VDC)

4000VAC 1min

1000VAC 1min

8ms max.

5ms max.

98m/s²

980m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

-40C to 85°C

PCB

Approx. 7g

Plastic sealed, Flux proofed

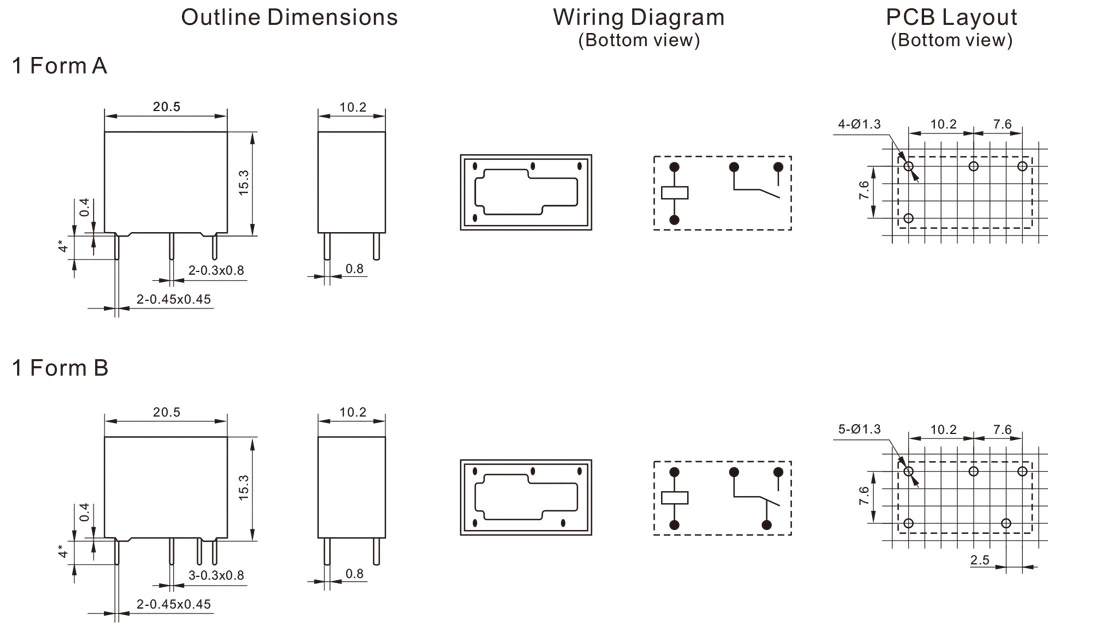

Dimensions of Subminiature Intermediate Power Relay JT33F

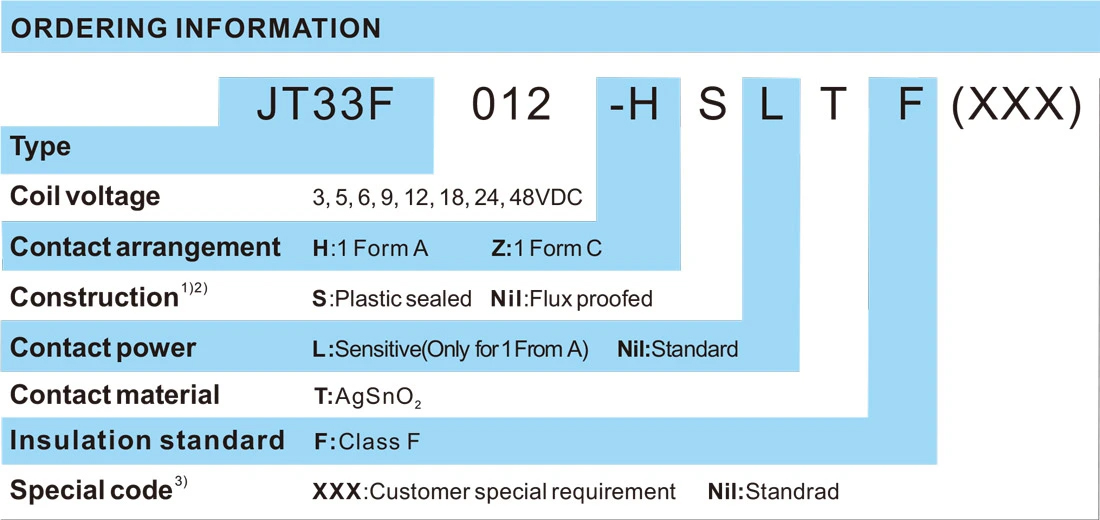

Subminiature Intermediate Power Relay JT33F Order Mark
