Subminiature High Power Relay JT92F


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Surge voltage(Between coil & contacts)

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Ambient temperature

Shock resistance

Vibration resistance

Humidity

Unit weight

Construction

Between coil & contacts

Between open contacts

Between  contacts poles

Functional

Destructive

1000M Ω (at 500VDC)

4000VAC 1min

1500VAC 1min

2000VAC 1min

10kV(1.2/50 μs)

25ms max.

25ms max.

AC: -40℃~+60℃
DC: -40℃~+85℃

98m/s²

980m/s²

10Hz to 55Hz 1.65mm DA

5% to 85% RH

Approx. 86g

Plastic sealed, Flux proofed

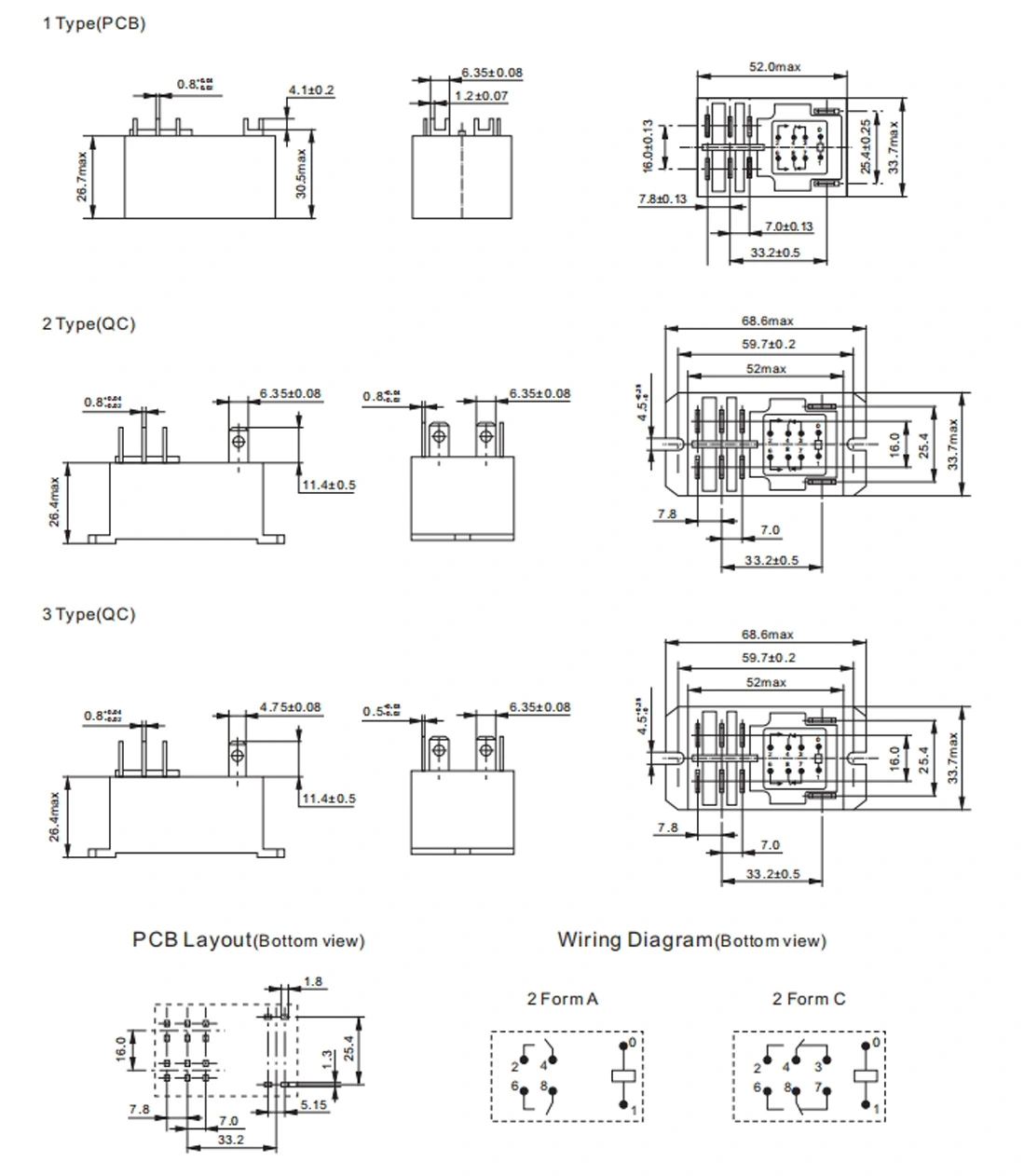

Dimensions of Subminiature High Power Relay JT92F

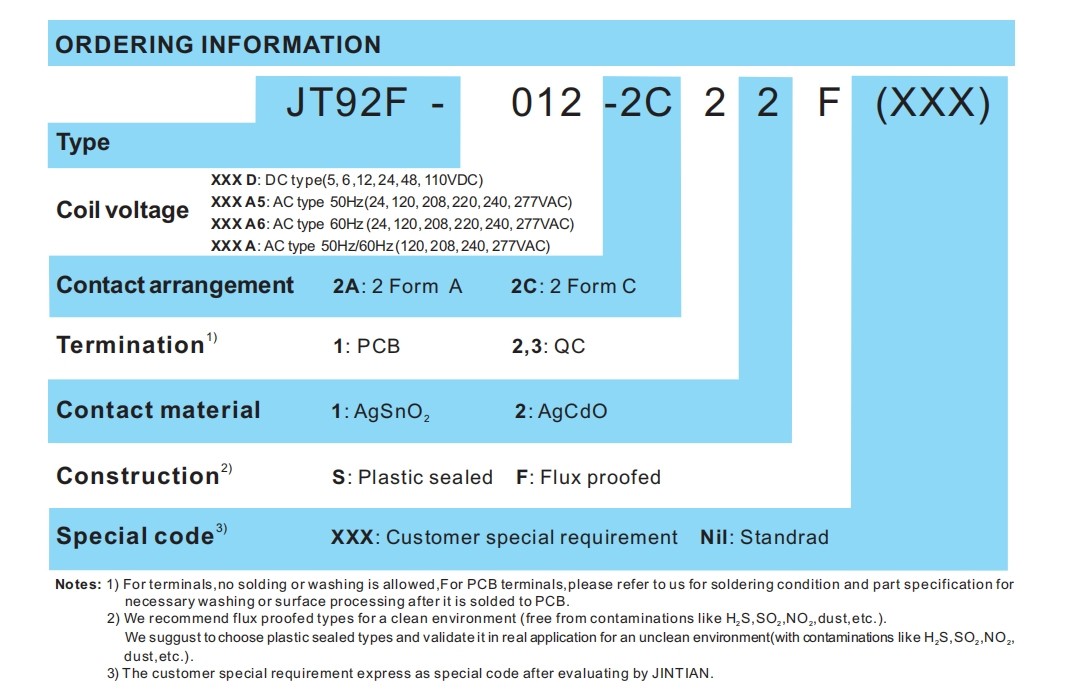

Subminiature High Power Relay JT92F Order Mark
