Miniature High Power Relay JT102F


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Temperature rise(at nomi. volt.)

Shock resistance

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Functional

Destructive

1000M Ω (at 500VDC)

4500VAC 1min

1000VAC 1min

20ms max.

10ms max.

60K max.

196m/s²

980m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

-25'C to 85°C

JT102F: PCB & QC
JT102F-P: PCB

Approx. 23g

Dust protected

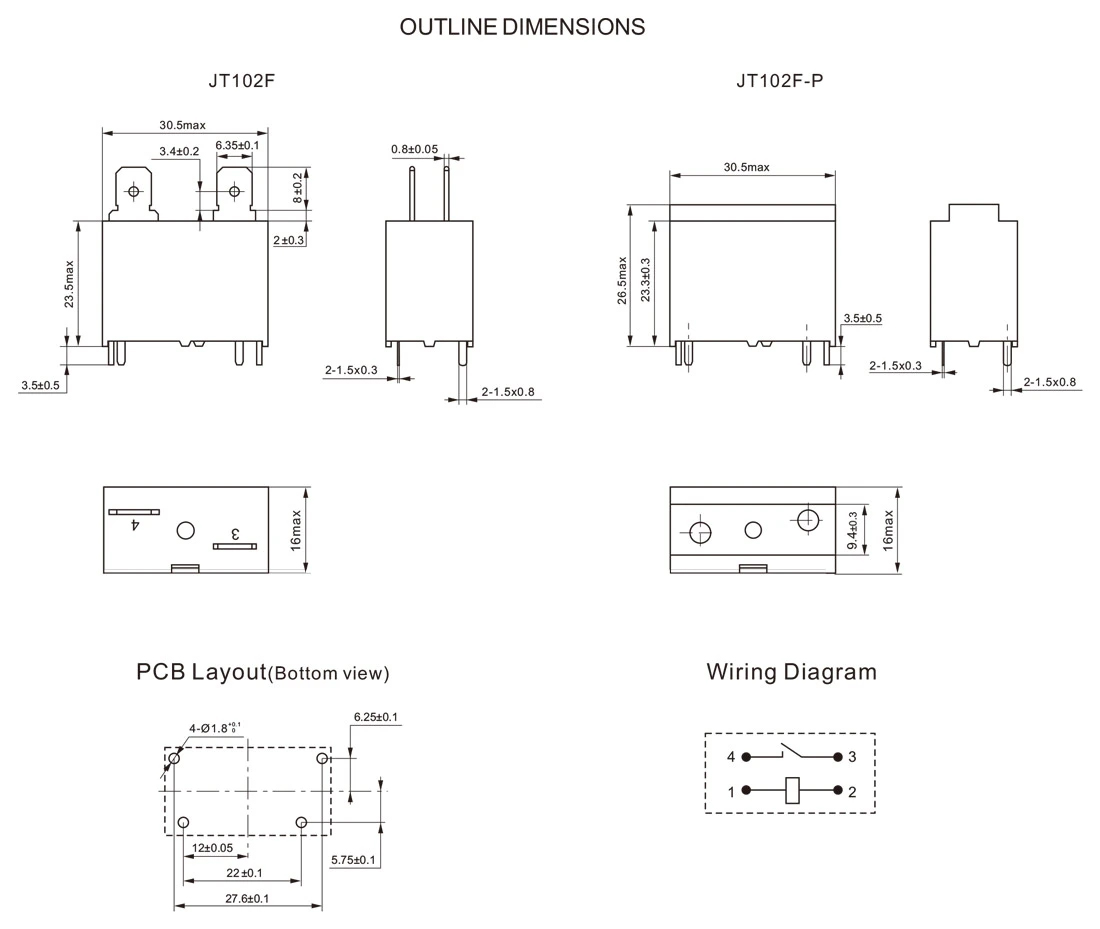

Dimensions of Miniature High Power Relay JT102F

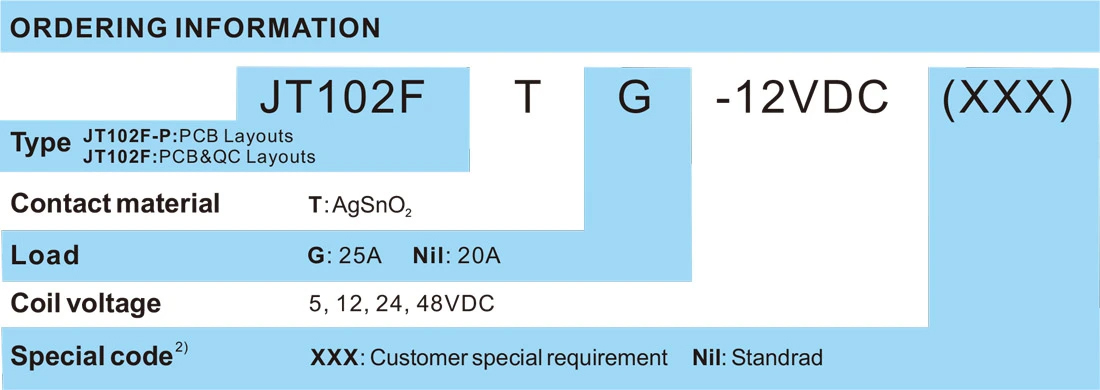

Miniature High Power Relay JT102F Order Mark
