Miniature High Power Relay JT2150


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Ambient temperature

Shock resistance

Vibration resistance

Humidity

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Functional

Destructive

1000M Ω (at 500VDC)

JT2150: 2500VAC 1min
JT2151: 2000VAC 1min

1500VAC 1min

15ms max.

10ms max.

-55°C to 85C

98m/s²

980m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

PCB

Approx.30g

Plastic sealed, Dust protected

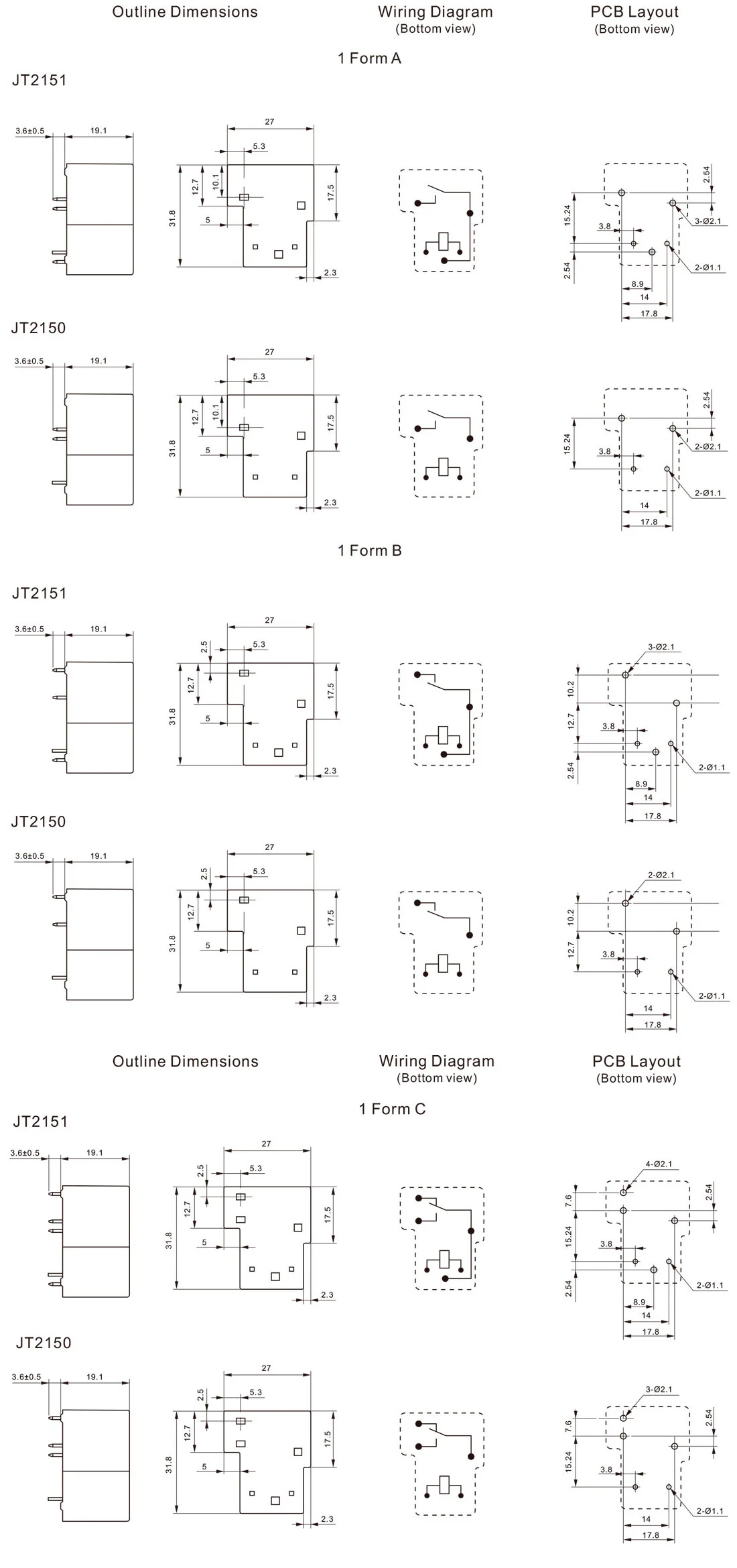

Dimensions of Miniature High Power Relay JT2150

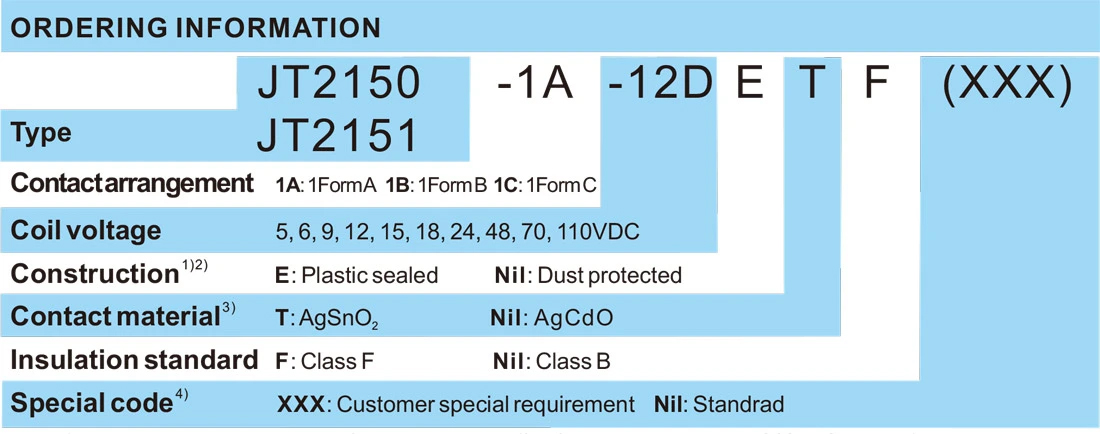

Miniature High Power Relay JT2150 Order Mark
