Miniature High Power Relay JT105F-4


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Ambient temperature

Shock resistance

Vibration resistance

Humidity

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Functional

Destructive

1000M Ω (at 500VDC)

2500VAC 1min

1500VAC 1min

DC type: 15ms max.

DC type:10ms max.

DC: -55℃ to 85℃
AC: -55℃ to 60℃

98m/s²

980m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

PCB&QC

Approx. 36g

Plastic sealed, Dust protected

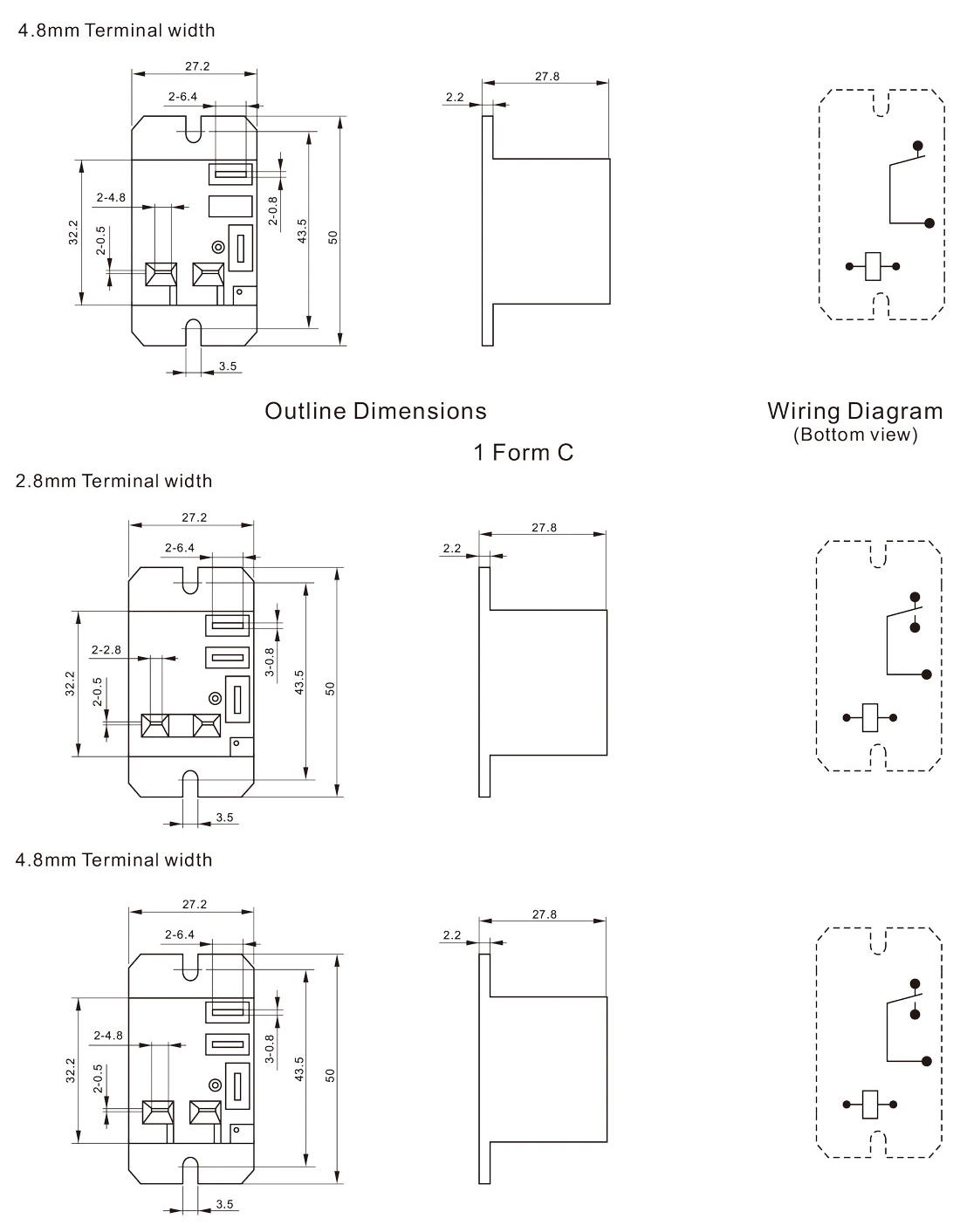

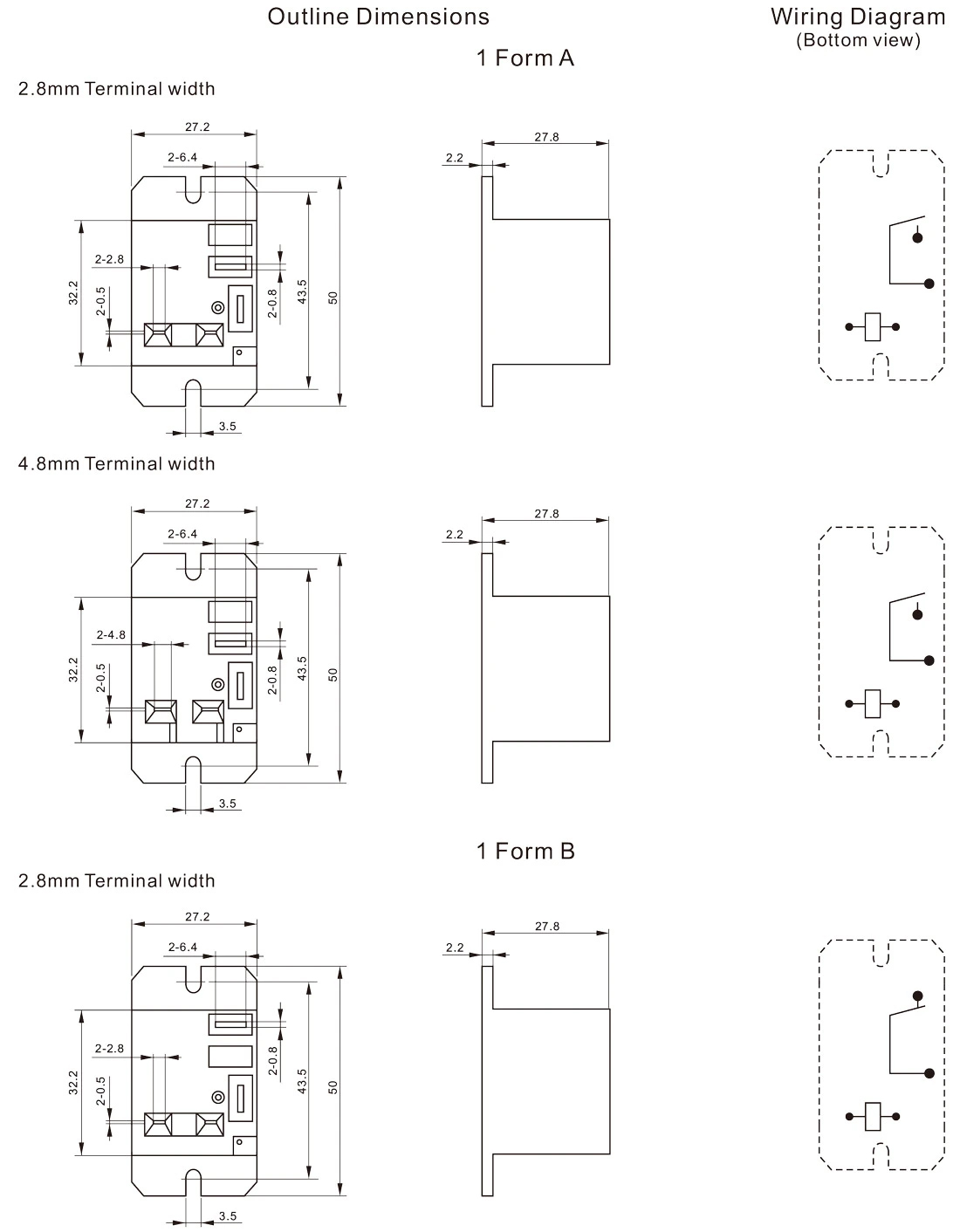

Dimensions of Miniature High Power Relay JT105F-4

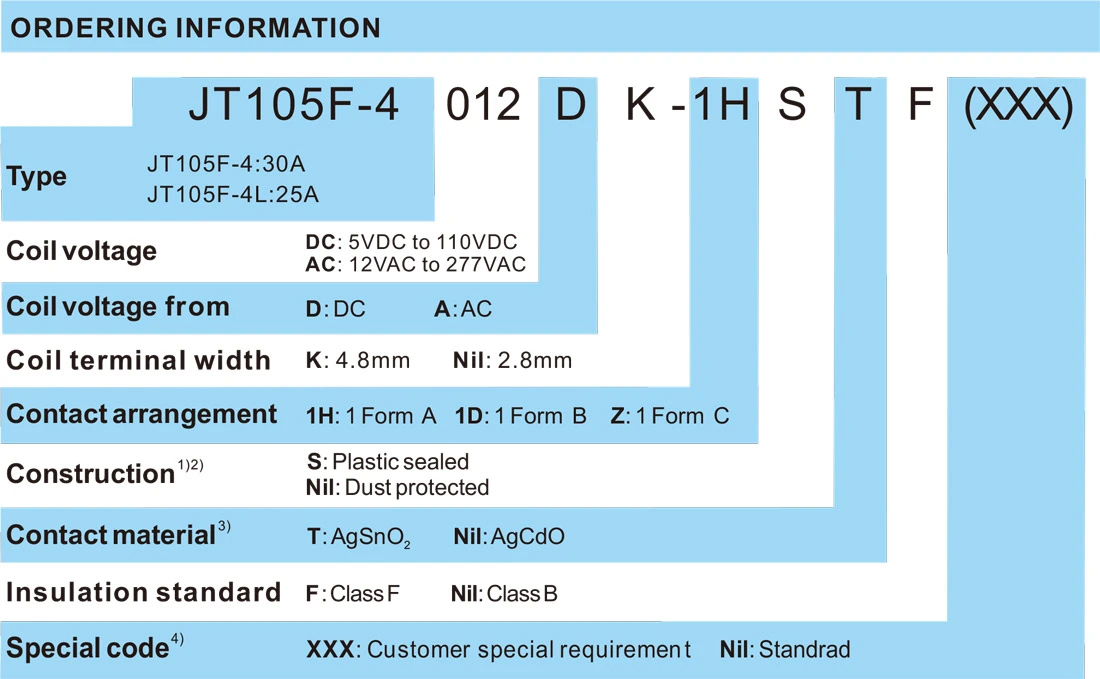

Miniature High Power Relay JT105F-4 Order Mark
