High Power Relay JT84F


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Temperature rise(at nomi. volt.)

Shock resistance

(Functional)

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

500M Ω (at 500VDC)

2500VAC 1min

1500VAC 1min

DC type: 25ms max.

DC type: 25ms max.

90K max.

147m/s² 11ms

10Hz to 55Hz 2.54mm DA

5% to 85% RH

-40℃ to 65℃

QC

Approx. 75g

Dust protected

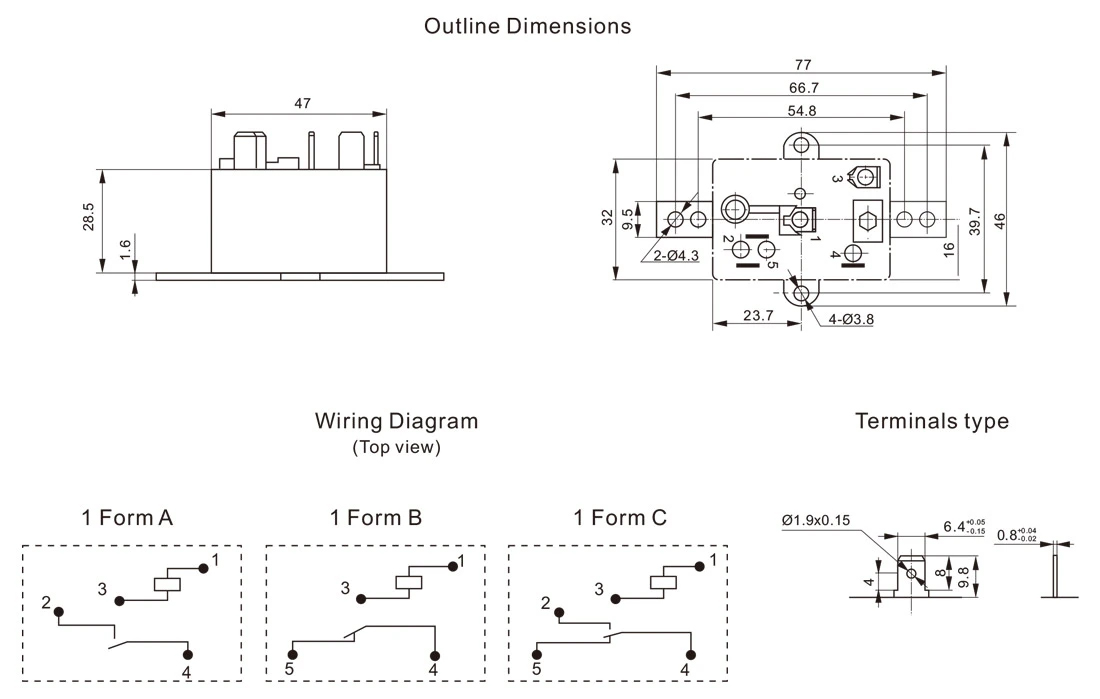

Dimensions of High Power Relay JT84F

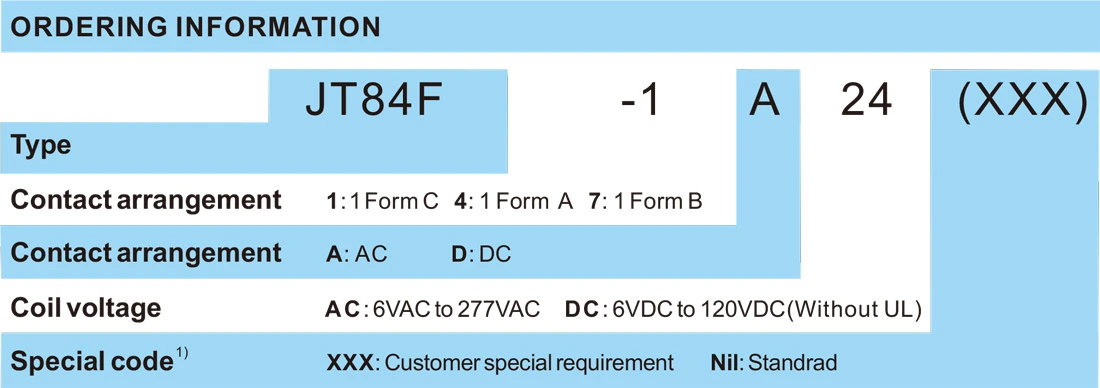

High Power Relay JT84F Order Mark
