Automotive Micro Relay JTKW


Tight structure and light weight
High current contact capacity(Carrying current: 35A/10min 25A/1h)
Improved heat resistance
ROHS&ELV compliant
Download Inquiry
Contact arrangement1A, 1B, 1CDielectric strength4)500VAC
Voltage drop(initial)1)Typ.: 50mV(at 10A)
Max.: 250mV(at 10A)		Operate timeMax.: 10ms (at nomi. vol.)
Max. continuous current2)35A(at 23°C, 10min)
25A(at 23°C, 1h)		Release time5)Max.: 5ms
Max. switching current3)NO: 35A
NC: 20A		Shock resistance6)98m/s²
Max. switching voltage16VDCVibration resistance6)10Hz to 55Hz 1.5mm DA
Min. contact load1A 6VDCAmbient temperature-40°C to 85°C
Electrical enduranceSee "CONTACT DATA"TerminationPCB
Mechanical endurance1 x107 ops(300ops/min)Unit weightApprox. 6g
Initial insulation resistance100MQ(at 500VDC)ConstructionPlastic sealed, Flux proofed

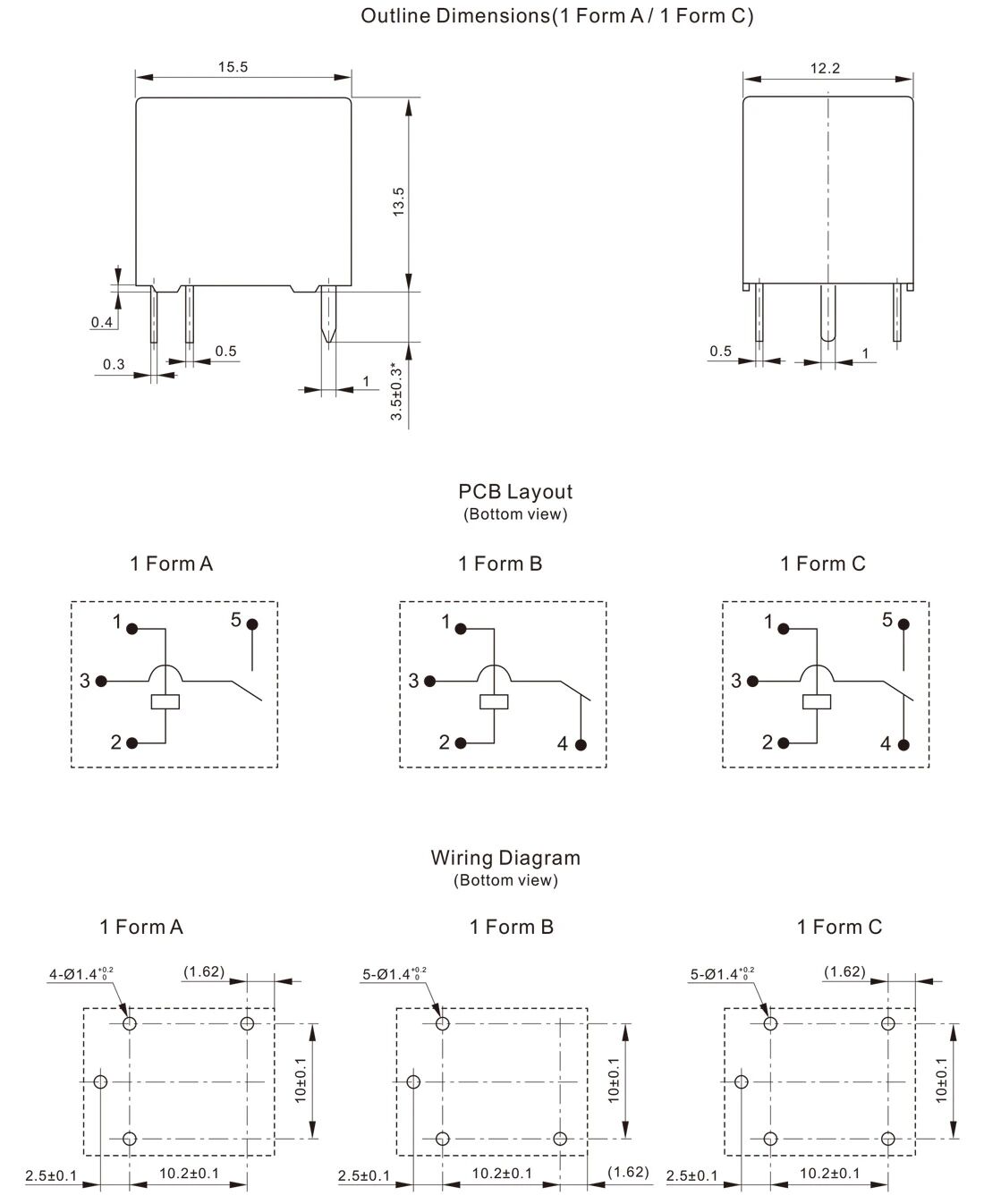

Dimensions of 5V Automotive Relay JTKW

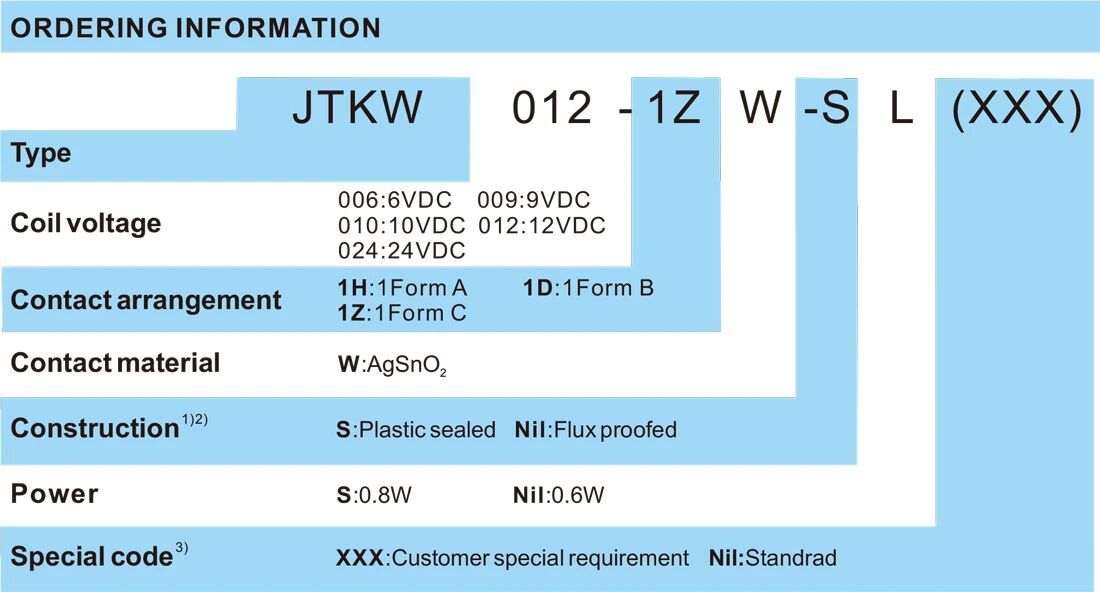

5V Automotive Relay JTKW Order Mark
